Install of 2013-14 heated/pony projector mirrors
#21
I completely agree. I'm gonna have to wait Neil next months paycheck to do it but I can't wait, I haven't decided yet but I might take advantage of the skull caps being off and do a little bit of plasti dip plus clear cost to give it a different look
#26
Legacy TMS Member
This is interesting.

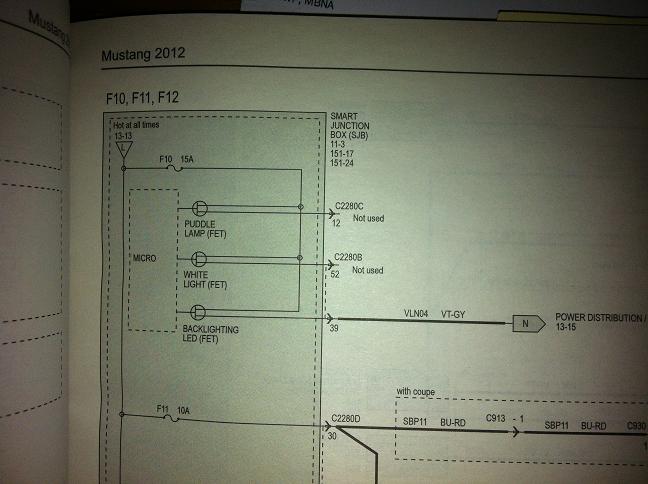

In my 2012 diagrams, it is showing that the 2012 SJB is set up for the puddle lights.
All I have to do is run a wire from the mirrors all the way to C2280C and put a pin in slot 12. Should be fine.
The defrost is a different matter. Rear defrost is set up differently between the 10-12 and 13-14 cars. Still, I think I should be fine with tapping into the rear defrost. My only concern is that defrost pulls a fair bit of current, so the mirrors and the rear defrost together may be a bit much? The defrost mirrors have their own 5A fuse. the switch is upgraded from 5A to 10A and comes from the SJB rather than the BJB.
In my 2012 diagrams, it is showing that the 2012 SJB is set up for the puddle lights.
All I have to do is run a wire from the mirrors all the way to C2280C and put a pin in slot 12. Should be fine.
The defrost is a different matter. Rear defrost is set up differently between the 10-12 and 13-14 cars. Still, I think I should be fine with tapping into the rear defrost. My only concern is that defrost pulls a fair bit of current, so the mirrors and the rear defrost together may be a bit much? The defrost mirrors have their own 5A fuse. the switch is upgraded from 5A to 10A and comes from the SJB rather than the BJB.
#28
Legacy TMS Member
The SJB should have the male pin there. It is the female pin that I would have to put into slot 12 on the 2280C connector that plugs into the SJB.
I'll post pics later.
I'll post pics later.
#29
Legacy TMS Member
The part number for the connectors is WPT-945. You will need 2 of them.

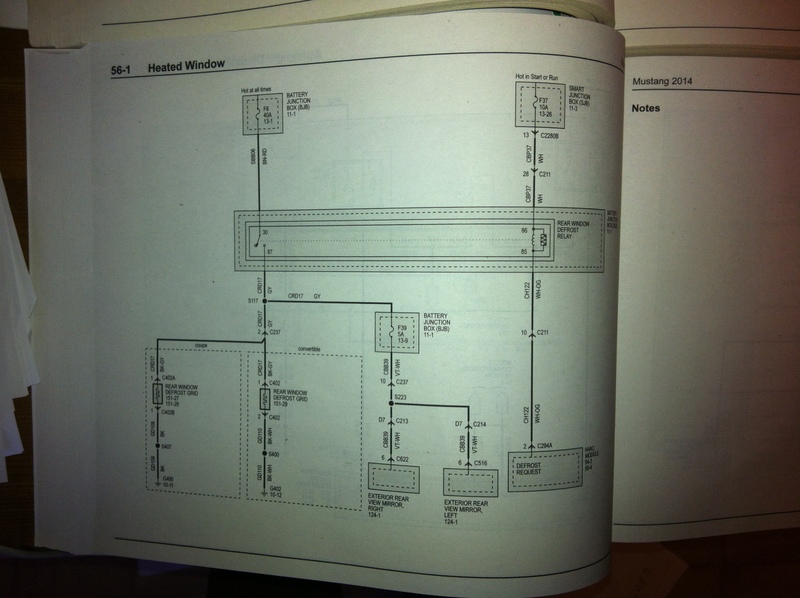

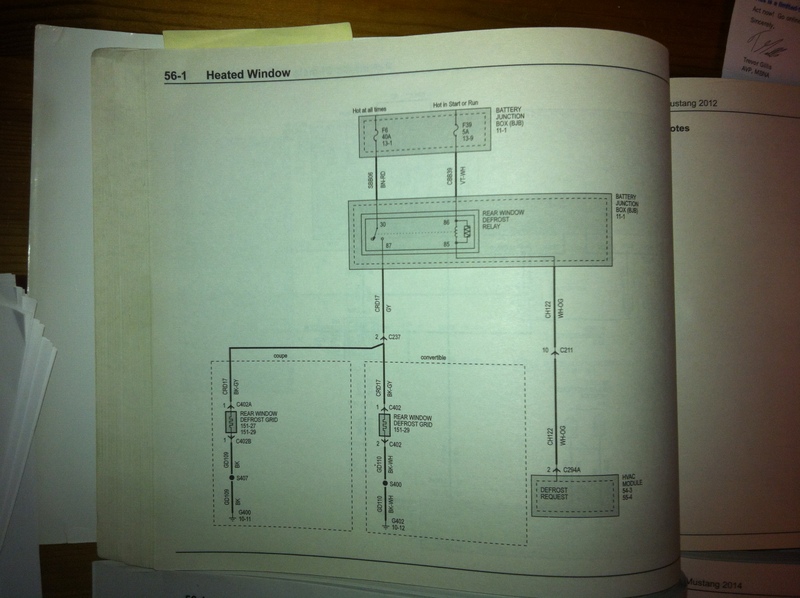

Here are the pics of the wiring diagrams showing the difference between the 2012 and a 2014. There is no difference. Looks like Ford had planned on the Pony Puddles lights form the beginning.
Here are the pics of the wiring diagrams showing the difference between the 2012 and a 2014. There is no difference. Looks like Ford had planned on the Pony Puddles lights form the beginning.
#31
Legacy TMS Member
The defrost will be another matter. It is not the same between a 12 and 14. I was thinking of just tapping into the rear defrost, but will that be drawing too much current?
Thoughts?
Thoughts?
#33
V6 Member
Join Date: July 21, 2012
Location: Missouri
Posts: 86
Likes: 0
Received 0 Likes
on
0 Posts
#39
Legacy TMS Member
Just ordered the pair for $318.10 shipped from the former Tousley Ford, now Autonation ... 800-328-9552
I hate you guys, making me spend money like this .... LMAO...
I hate you guys, making me spend money like this .... LMAO...
#40
Legacy TMS Member
Mirrors are installed on my 2012.
This is not plug and play, but wasn't hard to do. The part that was absolutley awful was routing the wires from the doors through the tubing and into the car. That was terrible and my hands are pretty bruised up and cut from it.
This is not plug and play, but wasn't hard to do. The part that was absolutley awful was routing the wires from the doors through the tubing and into the car. That was terrible and my hands are pretty bruised up and cut from it.
