Installing KR 500 Brake Duct Bezels

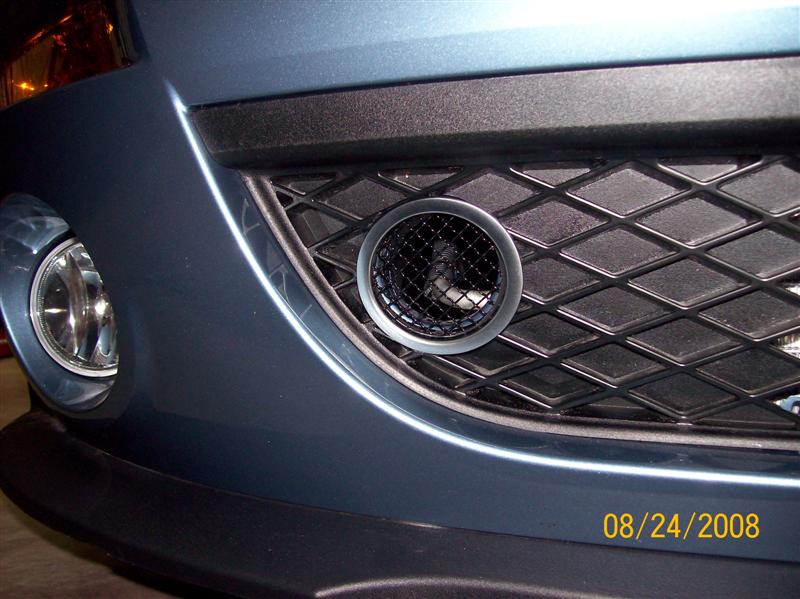

This weekend I was installing an Afco GT 500 Pro-Series Dual Pass Heat Exchanger. So I decided to install the Shelby 7S3Z-2K004/5-K KR 500 Brake Duct Bezels at the same time. If you are planning to install these brake duct bezels be prepared for a real PITA. The holes in the lower grill are bored @ 2 compound angles resulting in an oblong hole, making this installation very difficult without damaging the lower grill.
However, if you're willing to take enough time and have lots of patience it can be done. While the lower grill is still mounted in the fascia, you can use a 2.25" hole saw from the back side of the fascia to properly locate the bezels. Then remove the lower grill from the fascia. Now is where it gets difficult. Due to the compound angles, the remaining material must be carefully removed and the bezel fit numerous times to prevent making the hole either too large or the wrong shape. Then once you have one side done, you get to do it all over again on the other side. The bezel just slips in the grill and is held in place with a small plastic oblong shaped retainer from the back side of the grill. That retainer has a precut hole so the center can be removed to make the ducts functional. If you wish to leave the center in the retainer, the bezels are cosmetic. Then the grill can be reinstalled in the fascia.
Another option is to purchase the lower grill from Shelby with the holes for the bezels already pre-drilled. The 7S3Z-17K945-AA lower grill from Shelby is $209.95.
However, if you're willing to take enough time and have lots of patience it can be done. While the lower grill is still mounted in the fascia, you can use a 2.25" hole saw from the back side of the fascia to properly locate the bezels. Then remove the lower grill from the fascia. Now is where it gets difficult. Due to the compound angles, the remaining material must be carefully removed and the bezel fit numerous times to prevent making the hole either too large or the wrong shape. Then once you have one side done, you get to do it all over again on the other side. The bezel just slips in the grill and is held in place with a small plastic oblong shaped retainer from the back side of the grill. That retainer has a precut hole so the center can be removed to make the ducts functional. If you wish to leave the center in the retainer, the bezels are cosmetic. Then the grill can be reinstalled in the fascia.
Another option is to purchase the lower grill from Shelby with the holes for the bezels already pre-drilled. The 7S3Z-17K945-AA lower grill from Shelby is $209.95.
Last edited by tmcolegr; 8/24/08 at 05:14 PM.
