Who is making them ? Where can we get more information ?

-Bryan



Nope. AMps easy. We'll help you along.

I'll let you know when I have more information and permission to post it. The exciting one you've never heard of, and the other is huge and irritatingly expensive, but good stuff.



Thanks Infinity.

-Bryan



I will take some pictures for you tonight with the grill on and with the grill off. The Pioneer shallow 8" subs are strong with a rating of 500 watts maximum and 120 watts RMS. I am running them with a 125hz filter and 100 watts RMS each. They complement the two TMA 10 subs I put in my shaker 1000 enclosure. All of my highs and mids come from the upgraded 6X8 speakers I put in. All of the interior speakers still have a factory appearance but the subs in the trunk I went a little over board on



Yeah, the Pio's would hold up to the power I have MUCH better than the factory subs. The factory ones bottom easily, so dynamics are lost. Your system is shaping up very similar to mine save for your flashier presentation in the trunk. I'm trying to stealth mine, but decent small amps are hard to come by and expensive.

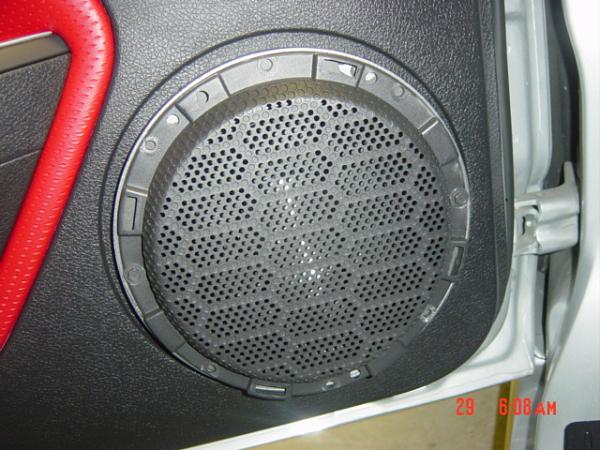

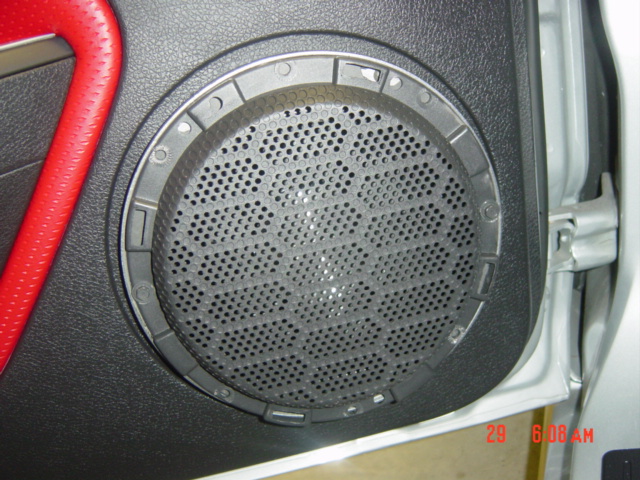

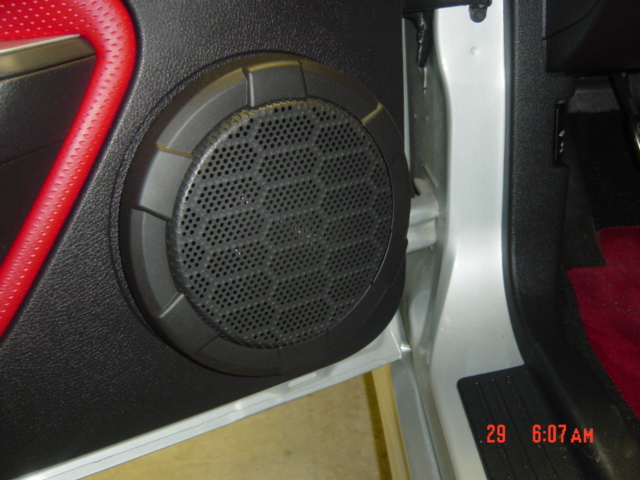

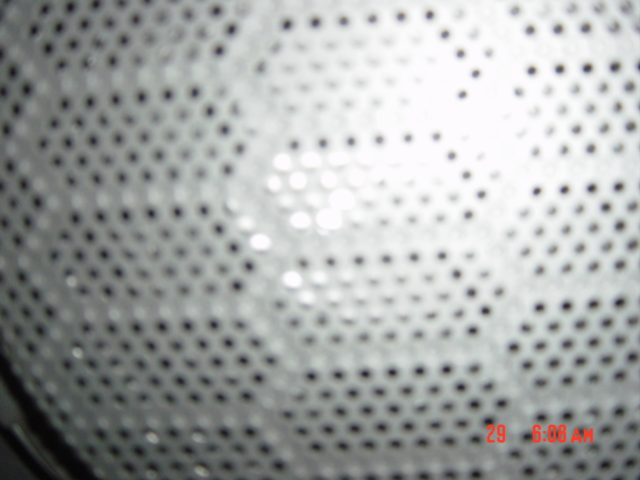

Here are some pics of the Pioneer Shallow 8" subs mounted in my door. I took the outer ring off so you can see that the holes don't match up the same as with the stock sub. The outside diameter is the same. The grill is held by two of the factory screws and I used an epoxy sealant to seal the grill to the speaker plate so that it would not rattle. So far so good I can turn it up very loud with no distortion or rattle. If you go this route you must use the sealant or it will rattle especially since I dindn't use all of the screws. You will notice the glimmer of the aluminum center of the pioneer sub other than that it looks totally stock.



That was exactly the picture I needed. Thank you. Are you only using 2 screws to hold the subs in? Or, just 2 for the rings? If you need to redo it anytime, get some of the "clay" based rope caulking. I'll get you a link. It is dirt cheap, doesn't dry, seals very well, and dampens vibration. Also, Manville Smith (JLAudio) is who got me started using it when I was installing 13 years ago. I think we see where he ended up.

This is exactly the stuff I had. Cost $2 at Meijer or Wal Mart
http://www.doityourself.com/invt/u194084

I've installed around 60 speakers and still have over half of the package left. Goes a long way.



There are 6 screws holding the speaker in place. 4 of them hold only the speaker and the two you can see hold the grill on. I used a silicone gel to seal the grill to the speaker and also the hole left in the back of the door enlcosure when I removed the big bolt that is in the back of the factory door sub. It is air tight and there are no vibrations even when I turn it up really loud.



Derek, are those a direct replacement for the stock subs and how much were they? Where can I get them?



They are not a direct replacement for the 8" sub but they are as close to it as I could find. They are not dual voice coiled like the factory subs but can handle more power. With this in mind you really should run them with an after market amp. They fit in the hole perfectly but since they are held in by six screws and not eight the holes dont line up right so you have to work around that as you can see in my pictures. The factory subs are also held in the back with a bolt coming out of the magnet and it goes through the enclosure so when you remove it you have to seal up that hole that will be left. It is a little extra work but the improvement in sound quality is awesome. I also replace my shaker 1000 subs in the back and I think I over did it with them because now my radio is over kill



Hey Derek and all,
I just bought a pair of these as well. I'm not worried about the stock grille since I'm replacing them with the Momo ones repainted to match the IUP. My question is can/should I run these with my Shaker 500 amps or wait until I get my Infinity amp?

Here is what I'm thinking for a system...

Head Unit: Pioneer AVIC Z-1
Subs: Pioneer Slim Mount TS-SW841D
Speakers: Four BA S-85 2-Ways or Pioneer TS-A6871R 3-Ways
(Open to suggestions on the 6x8s!)
Amplifier: One Infinity 5761a (56wx4/117wx2)
(Open to suggestions on the Amp as well!)

I'm not looking to blow the clothes off of lovely ladies walking by (although that would be a nice fringe benefit), just to have a tight sounding system to replace my lackluster Shaker 500.

Besides a wiring kit and new speaker wire is there anything else I'm missing?
Preacher



JL is coming out with a new line. Caught a peek at the brochure yesterday. NO ETA but they have really thin subs!



Please take some time to listen to something other than Pioneer for your upper speakers. If you like the sound of their tweeters then go for it. There are much much nicer sounding tweeters out there. Components, 5.25. JL XR or even their VR line will give you very smooth highs.



I've replaced a non-shaker system but want good info before I spend some coin on amps and sleakers.



What about Infinity Kappa 682.7s?



I haven't listened to Infinity myself. Many folks have said they are good. If you can A/B different speakers you will catch the difference between a smooth tweet and a bright metallic tweet. It is as much a personal preference than anything. That's why I cannot say one is bad vs another. Some folks will tell you X brand is crap. In the end, if you like it, then that's all that matters.

A really bright tweeter may have some oooo and ahhhh factor while listening to them but after a while, they can become annoying.



If you're looking for good highs, then the Kappa's are GREAT

If you're looking for something that will provide lows as well, then the kappa's may not be the right decision. But, I'm thinking that factory door subs will still be adequate for the lows.



The P2's are plenty of bass. I got the rockford fosgate 325 watt amp and it works well with the subs. If your putting them in the trunk i would recommend getting some dynamat to stop the rattling.



Harrison,
thanks for the info and advice. I don't consider myself an audiophile. Thirteen years flying in the Navy has wreaked substantial havoc on my ears!

Mike,
I'm thinking based on what was said in another thread, I'll go with the Infinity 6812cf reference speakers.
Jeff



Overview:
• Extremely Shallow Mounting Depth (2.5 inches)
• Extremely Small Sealed Enclosure Volume Requirements
• Patented “Concentric Tube” Suspension Design*
• Patented “Floating Cone Attach Method” Technology**
• DMA-Optimized Motor Designs
• Very Large Diameter Voice Coils
• Long Linear Excursion Capability
• High Power Handling
• Cast Alloy Frame
• Injection Molded, Mica-Filled Polypropylene Cone with Overmolded Santoprene Surround
• Precision-built in USA at JL Audio’s Miramar, Florida factory.
*U.S. Patent #5,734,132 and #6,095,280 ** U.S. Patent # 6,501,844 Other U.S. and International Patents Pending
Thin is Only the Beginning:

Creating great sounding bass is not that difficult when the available space in the car is generous and you use high quality drivers. When space is tight (like in stealthy custom installations or behind the seats of a truck or sports car), achieving excellent low frequency performance becomes far more challenging.

One way to deal with this is to use small subwoofer drivers, like our 6.5-inch or 8-inch models, but if the goal is higher output bass than the small drivers can comfortably deliver, a more potent solution is needed.

This is precisely where the new TW5 subwoofers slot into the lineup, offering groundbreaking performance in the tightest space applications. The patented thin-line woofer technology compresses the architecture of the woofer to create large driver performance in the tightest of spaces. Central to the technology is the “concentric tube” structure that supports the voice coil and suspension attachments. This permits placing the motor of the woofer much further forward in the speaker than with conventional designs, while maintaining excellent linear excursion capability.

Equally important is the fact that the TW5 designs are optimized for extremely small box volume applications. Whereas a typical “small-box” 12-inch driver operates in well over one cubic foot, the 12TW5 needs only 0.63 cubic feet to achieve optimum in-car performance! Outstanding power handling also gives the TW5’s a significant edge over smaller drivers.

With all the custom possibilities opened up by the TW5’s, it is going to be a lot of fun to see what talented installers achieve with them.






12TW5-4
Nominal Diameter: 12 in. (300 mm)
Continuous Power Handling: 300 W
One-Way Linear Excursion (Xmax): 0.38 in. (9.7 mm)
Voice Coil Diameter: 5.50 in. (140 mm)
Nominal Impedance: Single 4 ohm
Mounting Depth: 2.50 in. (63.5 mm)
Recommended Sealed Enclosure: 0.63 cu.ft. (17.7 liters)


13TW5-4
Nominal Diameter: 13.5 in. (345 mm)
Continuous Power Handling: 400 W
One-Way Linear Excursion (Xmax): 0.38 in. (9.7 mm)
Voice Coil Diameter: 7.00 in. (178 mm)
Nominal Impedance: Single 4 ohm
Mounting Depth: 2.50 in. (63.5 mm)
Recommended Sealed Enclosure: 0.75 cu.ft. (21.2 liters)



Available: 3rd Quarter 2007
