whats this plug for?
12/26/12, 05:04 PM
#1
Mach 1 Member
Thread Starter
Join Date: December 13, 2012
Posts: 599
Likes: 0
Received 0 Likes
on
0 Posts
whats this plug for?
i took my center console/cup holders out to try to find out where a rattling noise was coming from and saw this plug that wasnt pluged into anything and was just laying there. is it suppose to be hooked up to something? if so what?
12/26/12, 05:40 PM
#2
Cobra Member
Join Date: January 10, 2012
Location: Granbury, TX
Posts: 1,036
Likes: 0
Received 0 Likes
on
0 Posts
Do you have ambient lighting??? Might be the plug for that.
12/26/12, 06:08 PM
#3
Tasca Super Boss 429 Member
Join Date: November 14, 2007
Location: Pacific NW USA
Posts: 3,652
Likes: 0
Received 8 Likes
on
6 Posts
Might be for the gear selector lighting for cars that have an automatic trans, and since your car is a manual, the pigtail does not connect to anything.
12/26/12, 06:15 PM
#4
Cobra Member
Join Date: December 4, 2011
Location: Central Florida
Posts: 1,418
Likes: 0
Received 2 Likes
on
2 Posts
I believe you are right. My wife dropped her necklace in the benzel of my automatic transmission (2011), and I recall a plug connected to the gear selector to light up the PRND123 plate when I had to remove the cover to get it out.
12/26/12, 07:10 PM
#5
Mach 1 Member
Thread Starter
Join Date: December 13, 2012
Posts: 599
Likes: 0
Received 0 Likes
on
0 Posts
i believe that must be it. it not of the cup holder lighting cause they were still plugged in when i took this pic. i was thinking it might be for a switch like the 09's had so you could change the foot well and cup holder lighting with out having to go through the menu in the speedo. is there anyway i can add one of those switches?
12/27/12, 08:05 PM
#6
V6 Member
Join Date: December 20, 2012
Location: Starke, FL
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts

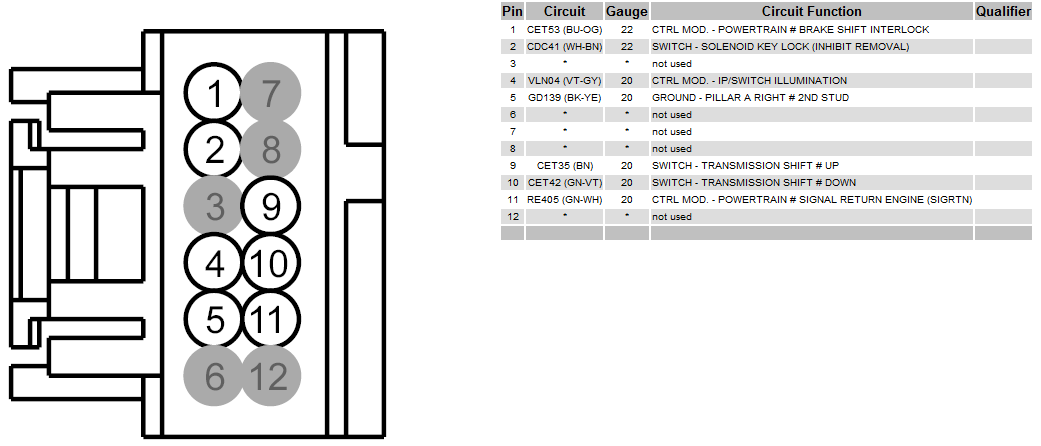

Pulled up the wiring diagrams, that should be C307 - "Transmission Shift Selector".
it would plug into the automatic shifter, here's the pinout, give's you a handy fused power and ground circuit if you ever need them there.
#1 - GD139 (BK-YE)20 GROUND - PILLAR A RIGHT # 2ND STUD
#2 - CDC41 (WH-BN)20 SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL)early build
#2 - CDC41 (WH-BN)22 SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL)late build
#3 - CET53 (BU-OG)22 CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK
#4 - VLN04 (VT-GY)20 CTRL MOD. - IP/SWITCH ILLUMINATION
#5 - CBB46 (WH-BU)20 FUSE - 46 OR CIRCUIT BREAKER
#6 - CET34 (BN-GN)20 SWITCH - TRANSMISSION CONTROL / OVERDRIVE CANCEL (TCS)
it would plug into the automatic shifter, here's the pinout, give's you a handy fused power and ground circuit if you ever need them there.
#1 - GD139 (BK-YE)20 GROUND - PILLAR A RIGHT # 2ND STUD
#2 - CDC41 (WH-BN)20 SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL)early build
#2 - CDC41 (WH-BN)22 SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL)late build
#3 - CET53 (BU-OG)22 CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK
#4 - VLN04 (VT-GY)20 CTRL MOD. - IP/SWITCH ILLUMINATION
#5 - CBB46 (WH-BU)20 FUSE - 46 OR CIRCUIT BREAKER
#6 - CET34 (BN-GN)20 SWITCH - TRANSMISSION CONTROL / OVERDRIVE CANCEL (TCS)
Last edited by B-Fox; 12/27/12 at 08:09 PM.
12/27/12, 08:17 PM
#7
Mach 1 Member
Thread Starter
Join Date: December 13, 2012
Posts: 599
Likes: 0
Received 0 Likes
on
0 Posts
Pulled up the wiring diagrams, that should be C307 - "Transmission Shift Selector".
it would plug into the automatic shifter, here's the pinout, give's you a handy fused power and ground circuit if you ever need them there.
PinCircuitGaugeCircuit FunctionQualifier1GD139 (BK-YE)20GROUND - PILLAR A RIGHT # 2ND STUD2CDC41 (WH-BN)20SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL)early build2CDC41 (WH-BN)22SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL)late build3CET53 (BU-OG)22CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK4VLN04 (VT-GY)20CTRL MOD. - IP/SWITCH ILLUMINATION5CBB46 (WH-BU)20FUSE - 46 OR CIRCUIT BREAKER6CET34 (BN-GN)20SWITCH - TRANSMISSION CONTROL / OVERDRIVE CANCEL (TCS)
it would plug into the automatic shifter, here's the pinout, give's you a handy fused power and ground circuit if you ever need them there.
PinCircuitGaugeCircuit FunctionQualifier1GD139 (BK-YE)20GROUND - PILLAR A RIGHT # 2ND STUD2CDC41 (WH-BN)20SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL)early build2CDC41 (WH-BN)22SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL)late build3CET53 (BU-OG)22CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK4VLN04 (VT-GY)20CTRL MOD. - IP/SWITCH ILLUMINATION5CBB46 (WH-BU)20FUSE - 46 OR CIRCUIT BREAKER6CET34 (BN-GN)20SWITCH - TRANSMISSION CONTROL / OVERDRIVE CANCEL (TCS)
12/28/12, 08:19 AM
#8
Cobra Member
Join Date: February 13, 2011
Location: Southern NH
Posts: 1,399
Likes: 0
Received 0 Likes
on
0 Posts
Pulled up the wiring diagrams, that should be C307 - "Transmission Shift Selector".
it would plug into the automatic shifter, here's the pinout, give's you a handy fused power and ground circuit if you ever need them there.
#1 - GD139 (BK-YE)20 GROUND - PILLAR A RIGHT # 2ND STUD
#2 - CDC41 (WH-BN)20 SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL)early build
#2 - CDC41 (WH-BN)22 SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL)late build
#3 - CET53 (BU-OG)22 CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK
#4 - VLN04 (VT-GY)20 CTRL MOD. - IP/SWITCH ILLUMINATION
#5 - CBB46 (WH-BU)20 FUSE - 46 OR CIRCUIT BREAKER
#6 - CET34 (BN-GN)20 SWITCH - TRANSMISSION CONTROL / OVERDRIVE CANCEL (TCS)
it would plug into the automatic shifter, here's the pinout, give's you a handy fused power and ground circuit if you ever need them there.
#1 - GD139 (BK-YE)20 GROUND - PILLAR A RIGHT # 2ND STUD
#2 - CDC41 (WH-BN)20 SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL)early build
#2 - CDC41 (WH-BN)22 SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL)late build
#3 - CET53 (BU-OG)22 CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK
#4 - VLN04 (VT-GY)20 CTRL MOD. - IP/SWITCH ILLUMINATION
#5 - CBB46 (WH-BU)20 FUSE - 46 OR CIRCUIT BREAKER
#6 - CET34 (BN-GN)20 SWITCH - TRANSMISSION CONTROL / OVERDRIVE CANCEL (TCS)
12/28/12, 08:42 PM
#9
V6 Member
Join Date: December 20, 2012
Location: Starke, FL
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
yes SC, the illumination circuit(violet wire with a grey tracer/stripe) is tied into the switch lighting which, judging by the transistor in the the smart junction box, should be pulse width modulated to allow LED dimming. use that for power and ground to the black with yellow wire. remember LED's have a specific positive and negative terminal.
and yes as well to Ace, #5(white with blue tracer) is a positive feed from fuse 46 which runs the signal side of a few relays, it's only a 5 Amp fuse so don't load it up, but it should work perfectly for a remote signal, it's hot in run and start. Where in NH are you from? I grew up there, lived in Barrington and Somersworth.
and yes as well to Ace, #5(white with blue tracer) is a positive feed from fuse 46 which runs the signal side of a few relays, it's only a 5 Amp fuse so don't load it up, but it should work perfectly for a remote signal, it's hot in run and start. Where in NH are you from? I grew up there, lived in Barrington and Somersworth.
Last edited by B-Fox; 12/28/12 at 08:51 PM.
12/29/12, 04:49 AM
#10
Cobra Member
Join Date: February 13, 2011
Location: Southern NH
Posts: 1,399
Likes: 0
Received 0 Likes
on
0 Posts
Moved up here to Epping 15yrs ago, man has this place grown... Right off of 27 heading toward Raymond about a mile from 'downtown' (lol - a church, pizza parlor, dry cleaner, and the town hall). That 5a circuit is just what I need for the remote signal, will let you know how it goes when I do the install.
12/29/12, 09:57 AM
#11
V6 Member
Join Date: December 20, 2012
Location: Starke, FL
Posts: 69
Likes: 0
Received 0 Likes
on
0 Posts
nice, I have family in epping and I even worked at NED for a summer. As a dealership tech I have full access to workshop manuals and wiring diagrams, send me a PM if you ever need any help.
