car alarm help please
5/25/17, 07:34 AM
#1
Member
Thread Starter
Join Date: February 7, 2012
Posts: 9
Likes: 0
Received 0 Likes
on
0 Posts
car alarm help please

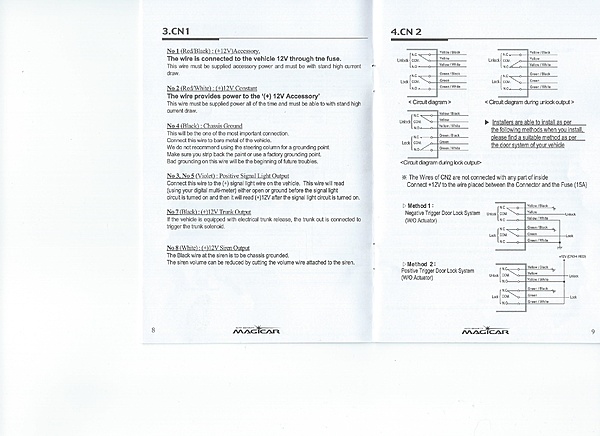

Hello everyone. So I was overseas few weeks ago and purchased a car alarm/starter system. Went to couple places for installation they refused to install since the wiring might be different etc. if anyone who understand diagram help me with section CN2 seems for door , but Green and Yellow (Com) what are those for. Thank you
6/1/17, 03:12 PM
#3
Mach 1 Member
Join Date: July 27, 2010
Location: Jacksonville, FL
Posts: 670
Likes: 0
Received 10 Likes
on
9 Posts
Those diagrams related to CN2 are showing the operation of internal relays that manage the power door locks. NC indicates the Normally Closed (connected at rest) terminals and NO indicates the Normally Open (not connected at rest) terminals of the relays. COM (Common) refers to the terminal that is internally connected to the NC and NO terminals to complete the circuit.
Your Mustang uses a negative trigger door lock system - when a lock switch is pressed, the circuit completes to ground (negative) signaling the Smart Junction Box (SJB) to activate the lock motors. So you want to use the diagram of Method 1 for your locks. Connect the yellow/white and green/white wires to a good ground. Connect the yellow wire to the unlock signal at the SJB - that's the yellow/purple wire in position 4 of the connector. Connect the green wire to the lock signal at the SJB - that's the blue/green wire in position 17 of the connector. Leave the yellow/black and green/black wires disconnected but tape them up to ensure they don't short out against any metal.
