CDC classic here, the quality of the part is excellent and I think it is the best chin spoiler out there.



CDC CLassic



CDC Agressive with aluminum skid plate (one off) fabercated, stainless powder coated grill insert.



I like that skid plate, great idea. Being a machinist, I think I am going to do that to mine.



cdc classic:



My Chin...



How did you get the GT500 spoiler to fit without any modification to the splitter? What did you have to do to the bumper?



CDC Classic Chin Installed 7/24/07



CDC Classic ~



What grille is that? I really like it. Is it an overlay, or a comlete replacement? Also where can i order one? Thanks!

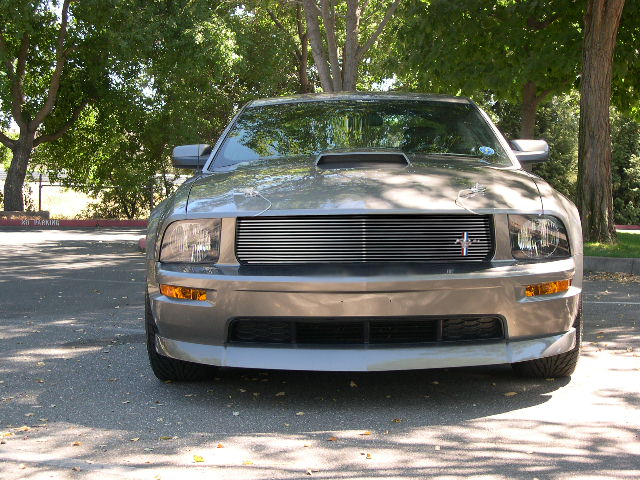

Cervinis B2 chin spoiler.



I like the looks of the FR500 Appearance package front spoiler from FRPP, but it looks very much like the CDC Classic in black textured. Anyone know if they are the same, like with the FRPP CAI being the Steeda kit with a Ford Racing Sticker?



U R correct - it is the CDC classic

(the louvers Ford Racing sells are also CDC)



Take 1 inch wide tape, and following the contour of the bottom edge of the bumper cover, attach it to the underside of the bumper cover between the wheel well opening and the center notch. At the wheel well opening, attach another 1 inch piece at the end of the bumper cover (creating a curved "L").

Starting an inch in from the wheel well opening (using utility knife or drywall saw) make the long cut to just inside (1 inch) the center notch of the bumper cover.
This will allow the "honeycomb" section to pass through the center of the cover.

When finished with that cut, make the short cut (approximately 1.5 inches long and an inch in from the wheel well opening) to complete the "L". You do not need to remove the bumper cover material that remains. I attached it to one of the rear mounting points to provide additional stregth.

The splitter will slide into the cutout area and its tabs will overlap the "lip" created by the cuts.

Use the top wheel well mounting point (for the 90 degree wings) and the four mounting points on the underside back edge of the bumper cover. Two of the splitters mounting holes can be used on each side of the center notch. Additional mounting points can be drilled on each side near the beginning of the notch. This will bring the bumper cover bottom edge flush against the splitter. I also drilled the splitter "wings" so that the factory mounting points could be used.

Cover the exposed center mounting holes and honeycomb with black bodyside molding and that about does it.
Clean the surface well and consider a touch of "RTV" to provide additional grip for the molding.



Good to know. I really liked the textured look of the FRPP appearance package when I saw it in person and wanted the front spoiler, but wasn't sure on the blackout panel or the $500 price tag. CDC it is! Thanks!



Its a overlay from Moss, thnks for the comments
