adding more wires to your clockspring

With only 1 empty slot in my clockspring connectors, I needed to add 2 more to hardwire my paddle shifters.

The clockspring is a pretty simple device - its just a strip of wire ribbon. So I decided to add in another wire ribbon. That is the easy part, but then I would need to somehow have the wires enter and exit the clockspring, and I can't use the existing plugs, so I would have to add my own for this. Involved drilling an exit hole one one side, but no problem, really.

I bought an extra used clockspring, in case I messed it up.

Then I would need two 4 pin connectors, soldering iron, solder and flux.

So first, dissasembling the clockspring. Pretty easy. Just held together with tabs.

Then I had a wire ribbon with 4 wires in it, so I cut it to around the same length as the old one, but longer. Can trim later.

On one end, I drilled holes into each exposed copper strip for the wire (this wire will go to the new connector that needs to be added) to go through. Then I sanded off the plastic sheath to expose the bare copper. Need metal exposed for thee solder.








Reply
Old Sep 5, 2020 | 08:38 PM
  #2
jim010's Avatar
Thread Starter
Legacy TMS Member

Joined: November 7, 2006
Posts: 2,792
Likes: 57
From: Alberta

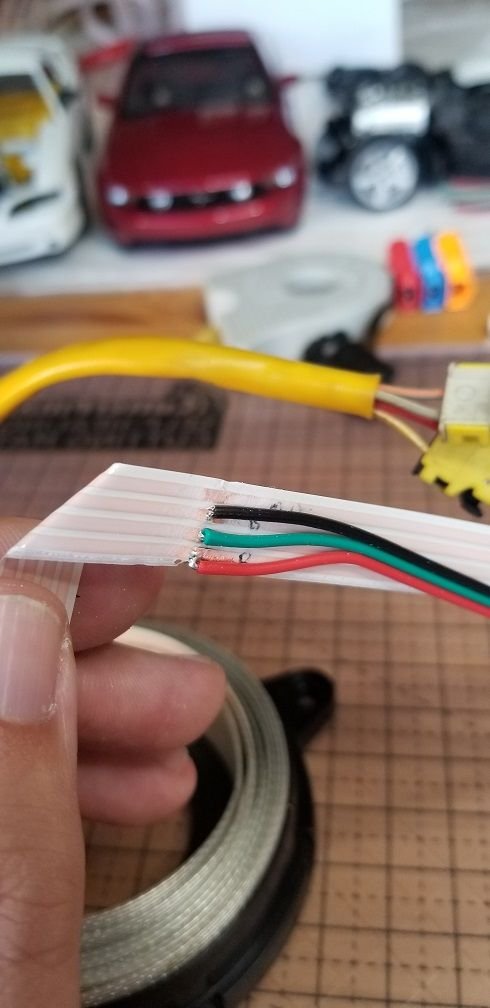

Solder the 3 wires (could have done 4, but I needed only 3). The wire goes through the hole I drilled and then soldered on the back. Trim off the excess ribbon.


Reply
Old Sep 5, 2020 | 08:42 PM
  #3
jim010's Avatar
Thread Starter
Legacy TMS Member

Joined: November 7, 2006
Posts: 2,792
Likes: 57
From: Alberta

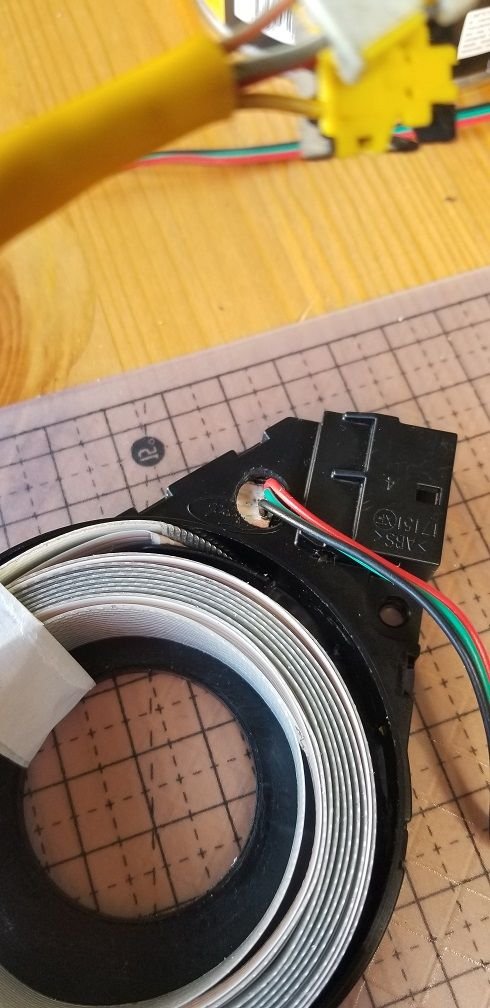

Now fold the ribbon to follow the old ribbon, and route the wires out of the clockspring. For the steering column side, I had to drill a hole to allow the wires to exit, as there was no other place for them to go. Then covered the hole all up with hot glue.




Reply
Old Sep 5, 2020 | 08:45 PM
  #4
jim010's Avatar
Thread Starter
Legacy TMS Member

Joined: November 7, 2006
Posts: 2,792
Likes: 57
From: Alberta
Now for the steering wheel side. Coil the ribbon up with the old one, and leave a little bit extra. Drill your holes and sand off the plastic sheath like before. Then solder them. Fold the ribbon to follow the old one. For the steering wheel exit, I had my wires follow the path of the airbag wires, so no extra hole here.


Reply
Old Sep 5, 2020 | 08:47 PM
  #5
jim010's Avatar
Thread Starter
Legacy TMS Member

Joined: November 7, 2006
Posts: 2,792
Likes: 57
From: Alberta

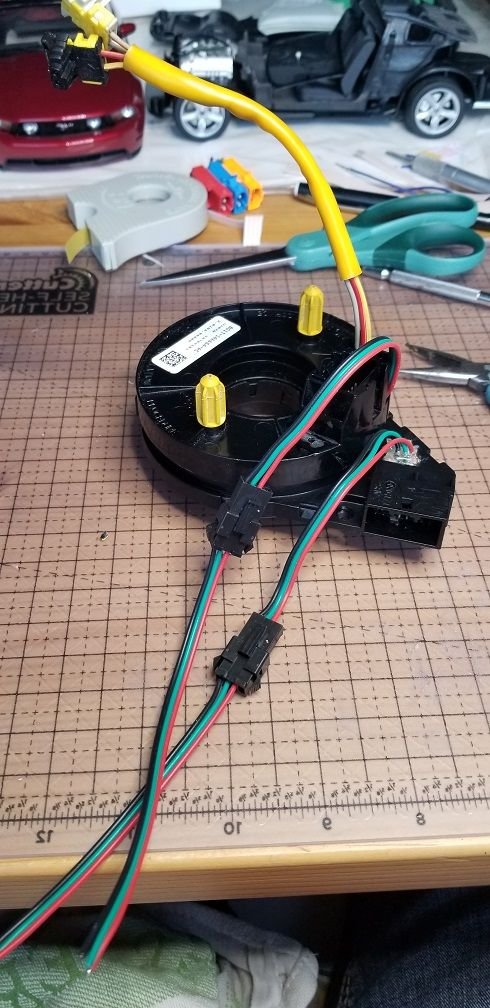

Put it back together. And that's it. I now have 3 extra wires I can use. These will be for wiring up the paddle shifters directly, so I don't need to use a transmitter.



Reply
Old Sep 6, 2020 | 09:53 AM
  #6
SpectreH's Avatar
Super Boss Lawman Member

Joined: February 5, 2015
Posts: 4,247
Likes: 1,155
From: Yukon, OK
Awesome writeup!
Reply
Old Sep 6, 2020 | 04:19 PM
  #7
houtex's Avatar
Legacy TMS Member

Joined: February 2, 2004
Posts: 7,648
Likes: 675
From: Insane
I had always wondered... That's awesome stuff, Jim!

/Now has new plans he doesn't have any business thinkin' up...
Reply
Old Sep 6, 2020 | 04:25 PM
  #8
jim010's Avatar
Thread Starter
Legacy TMS Member

Joined: November 7, 2006
Posts: 2,792
Likes: 57
From: Alberta
Originally Posted by houtex
I had always wondered... That's awesome stuff, Jim!

/Now has new plans he doesn't have any business thinkin' up...
Hah! What are you thinking, houtex?
Reply
Old Sep 7, 2020 | 05:01 PM
  #9
houtex's Avatar
Legacy TMS Member

Joined: February 2, 2004
Posts: 7,648
Likes: 675
From: Insane
Oh, I don't know... maybe a new horn 'pad' with buttons on it that'll do ALL THE THINGS. Like, oh, I dunno, maybe depoly a bulletproof/waterproof/pressure capable bubble canopy, or perhaps the off-road only () deforestation dual circular saws... Or the autojacks. That'd be pretty nifty in traffic... Chawnkchawnkchawnkchawnk...

/Powerful Mach Awesome.
//I told you, I don't need to be thinking things right now...
///[G] for homing robot! I mean... we can totally do that now!

Last edited by houtex; Sep 7, 2020 at 05:02 PM.
Reply
Old Sep 7, 2020 | 05:49 PM
  #10
Mustang Freak's Avatar
2013 RR Boss 302 #2342

Joined: March 6, 2012
Posts: 11,801
Likes: 2,412
From: Lancaster, PA
Deforestation dual circular saws gets my vote!
Reply
Old Sep 8, 2020 | 03:56 PM
  #11
Siber Express's Avatar
Legacy TMS Member

Joined: May 19, 2010
Posts: 1,927
Likes: 567
From: Clinton TN
I am thinking the Auto Jacks also, the Dual Saws would definitely be cool though

Last edited by Siber Express; Sep 8, 2020 at 03:58 PM.
Reply
Old Dec 1, 2020 | 10:09 AM
  #12
MadeULook's Avatar
Member

Joined: June 2, 2018
Posts: 24
Likes: 1
From: Sacramento
You could hardwire a transbrake or line-lock button on the steering wheel. That would be pretty cool and you wouldn't have the wires hanging all over your steering wheel.
Reply
Old Dec 1, 2020 | 12:05 PM
  #13
MadeULook's Avatar
Member

Joined: June 2, 2018
Posts: 24
Likes: 1
From: Sacramento
This really is a great option, when adding paddle shifters! I'm a novice (at best) regarding wiring, so please bare with me... Where are you sourcing the wire ribbon from? Do you know about how much (length) you needed?

Thanks! - Lee
Reply
Old Dec 1, 2020 | 12:36 PM
  #14
jim010's Avatar
Thread Starter
Legacy TMS Member

Joined: November 7, 2006
Posts: 2,792
Likes: 57
From: Alberta
I used wire ribbon from an extra clockspring I had sitting around for my wife's car. Unfortunately, I never measured the length, but whatever it was, it was a fair bit longer than what I needed, which is good.

The clockspring was for a 1999 - 2004 Porsche 911, if that helps.
Reply
Old Dec 2, 2020 | 10:26 PM
  #15
awoychosky123's Avatar
Mach 1 Member

Joined: August 22, 2014
Posts: 545
Likes: 47
From: Vermont
Wow fantastic write up, A+ for the model mustang in the background, really need to make mine in 1/25 sometime!
Reply
Old Dec 4, 2020 | 01:45 PM
  #16
jim010's Avatar
Thread Starter
Legacy TMS Member

Joined: November 7, 2006
Posts: 2,792
Likes: 57
From: Alberta
Lol!

I have a large diecast car collection in 1:18, and a good number of them are Mustangs. I like to modify and customize my models, especially if no model exists of a certain type of car. So what you see in the background is a replica of my car, a 1967 I am converting into a replica of the Mustang from the Fast and the Furious Tokyo Drift, and also of a SN95 I am converting into a 1995 Cobra R.
Reply
Old Dec 5, 2020 | 09:11 PM
  #17
awoychosky123's Avatar
Mach 1 Member

Joined: August 22, 2014
Posts: 545
Likes: 47
From: Vermont
Love to see them when you are done!
Reply
Old Jun 12, 2021 | 07:41 PM
  #18
Derry's Avatar
Member

Joined: June 12, 2021
Posts: 4
Likes: 2
From: Victoria
Thanks Jim
Amazing work and thoughtfulness in sharing the engineer/tinkers mind with everyone else.
I have read the "transmitter" thread a handful of times. It looked complete enough even I could grasp most of the steps.

But I was more drawn to the 'wired' option to do the paddles.

So I have ordered
1. a new Clock spring (so I don't ruin the current one, and so I can play at my pace and not cripple the car)
2. a 3 meter piece of 4 wire clock spring - visually same as what I see in the pics above.) I sure hope 3 meters is long enough. Couldn't find a length. Guessed.
3. I lined up some connectors... found options for 3 or 4... they look similar to those in your pictures.

Now my hope is to find out if Jim was has completed the 'go wired' mod? A bit of transfer from Jim's head to "paddle shifters for dummies" for me to follow.

How you will connect the paddle shifters wires to your modded clock spring. and how you think you will route cable down column and over to shifter. And how to splice into the shifter wires harness.
Here is hoping it is a finished effort... and not a secret. Hopefully I didn't miss this somewhere else in the posts I have looked at.

Again, thanks for all the guide work you have done so far.
Reply
Old Jun 20, 2021 | 12:20 PM
  #19
jim010's Avatar
Thread Starter
Legacy TMS Member

Joined: November 7, 2006
Posts: 2,792
Likes: 57
From: Alberta
Now my hope is to find out if Jim was has completed the 'go wired' mod? A bit of transfer from Jim's head to "paddle shifters for dummies" for me to follow.
Yes, my car is now wired up with no transmitter and has been working flawlessly. Not that the transmitter was a problem.

​​​​​​​How you will connect the paddle shifters wires to your modded clock spring. and how you think you will route cable down column and over to shifter. And how to splice into the shifter wires harness.
No secret here. You just wire these directly to the sport shift wires from the shifter. You only need 3 wires to do this. The rout yo take is upto you, but I went down the steering column and then to the back of the center stack using zip ties to attach the wires so they don't dangle. From there go under the AC controls. It will become obvious to you which path to take once you take stuff apart.

So follow the wiring instructions for the paddles to the transitter, but instead it will go to the new connector you bought. Be well aware or label which wire is up, down and ground. Once you get to the shifter, look for these wires as per the original instructions:

on the shifter:
shift up - brown

shift down - green/purple
signal return - green white

​​​​​​​And always test to make sure that everything is good before you start soldering.
Reply
Old Jun 24, 2024 | 04:27 PM
  #20
J. Dub's Avatar
Member

Joined: October 20, 2010
Posts: 36
Likes: 0
From: in the Internet
Originally Posted by jim010
Yes, my car is now wired up with no transmitter and has been working flawlessly. Not that the transmitter was a problem.



No secret here. You just wire these directly to the sport shift wires from the shifter. You only need 3 wires to do this. The rout yo take is upto you, but I went down the steering column and then to the back of the center stack using zip ties to attach the wires so they don't dangle. From there go under the AC controls. It will become obvious to you which path to take once you take stuff apart.

So follow the wiring instructions for the paddles to the transitter, but instead it will go to the new connector you bought. Be well aware or label which wire is up, down and ground. Once you get to the shifter, look for these wires as per the original instructions:

on the shifter:
shift up - brown

shift down - green/purple
signal return - green white

And always test to make sure that everything is good before you start soldering.
Would you say it's slightly faster shifting through gears hardwired as opposed to when you were using the wireless transmitter?
