08 mustang shift selenoid pigtail wires are different color on factory harness
the wires coming off the factory harness have completely different colors then the replacement pigtail, the replacement has 12 wires and factory has 11 as well im sure the pigtail will work I just need to know what colors from factory harness are gona connect to witch colors on the replacement please help!!!! The factory harness has #1 orange with yellow stripe, #2 purple with orange stripe, #3 brown with yellow stripe #4 Grey with red stripe #5 purple with white stripe #6 solid white #7 white with red stripe #8 blue with pink stripe #9 black with light green stripe #10 orange with black stripe and #11 pink with black stripe and the replacement pigtail has #1 solid blue #2 yellow with green stripe #3solid yellow #4 solid Grey #5solid red #6 Grey with black stripe #7 solid black #8 solid white #9 solid purple #10 solid brown #11 solid green and #12 solid orange can someone please help me here this is becoming a headache
SUPERCHARGED RED ROCKET ------------------Master-Moderator
Joined: May 11, 2006
Posts: 10,645
Likes: 2,511
From: Carnegie, PA
Just for future reference, submitting duplicate threads will not provide any faster results.. Therefore, it is unnecessary! At any rate, I would suggest contacting the aftermarket vendor you purchased the wiring harness kit from who would be your best resource towards making the proper connections... In the meantime, you should also consider introducing yourself in the "Introductions" sub-forum section by highlighting the forums drop down menu located on the upper left corner of the home page, then highlight "Ford Mustang Chat" and then highlight/select "Introductions" Once your in the " Introductions" sub-forum section, you can either choose to introduce yourself from any of the existing threads or you can submit a new thread and introduce yourself that way as an option as well...
It's Simply a Matter of Renaming the Wires on the Plug to a Pin Number. I assume that Cap with the Bolt Snaps Off Somehow. So Lets Start with Number One Which Shows to be LB/PK Light Blue Pink. It is Number 1. Look on Plug for Number 1 Pin and See What Color Wire it is. Rename # 1 With a Piece of Masking tape and Repeat in Order Until Done. You Could Number Car Side Colored Wires as Well! Print out Chart to Facilitate
Splice Used Wires with Butt Connectors and Test Operation. If Everything Works I would Advise Having Wires Soldered and Use Heat Shrink Tubing. For Best Results Someone with Soldering Experience would Be Useful.
May Want to Remove Harness From Car Instead of Trying to Repair Under Vehicle. I think a Much Cleaner Install would be Easier That Way! But you Gotta be Careful Not to Damage any of the Other Plugs.
Oh and I would Think Pigtail Supplier would have Pin to Color Chart Available as Well!
KC
Last edited by 05stangkc; Dec 17, 2022 at 10:13 AM.
It's Simply a Matter of Renaming the Wires on the Plug to a Pin Number. I assume that Cap with the Bolt Snaps Off Somehow. So Lets Start with Number One Which Shows to be LB/PK Light Blue Pink. It is Number 1. Look on Plug for Number 1 Pin and See What Color Wire it is. Rename # 1 With a Piece of Masking tape and Repeat in Order Until Done. You Could Number Car Side Colored Wires as Well! Print out Chart to Facilitate
Splice Used Wires with Butt Connectors and Test Operation. If Everything Works I would Advise Having Wires Soldered and Use Heat Shrink Tubing. For Best Results Someone with Soldering Experience would Be Useful.
May Want to Remove Harness From Car Instead of Trying to Repair Under Vehicle. I think a Much Cleaner Install would be Easier That Way! But you Gotta be Careful Not to Damage any of the Other Plugs.
Oh and I would Think Pigtail Supplier would have Pin to Color Chart Available as Well!
KC

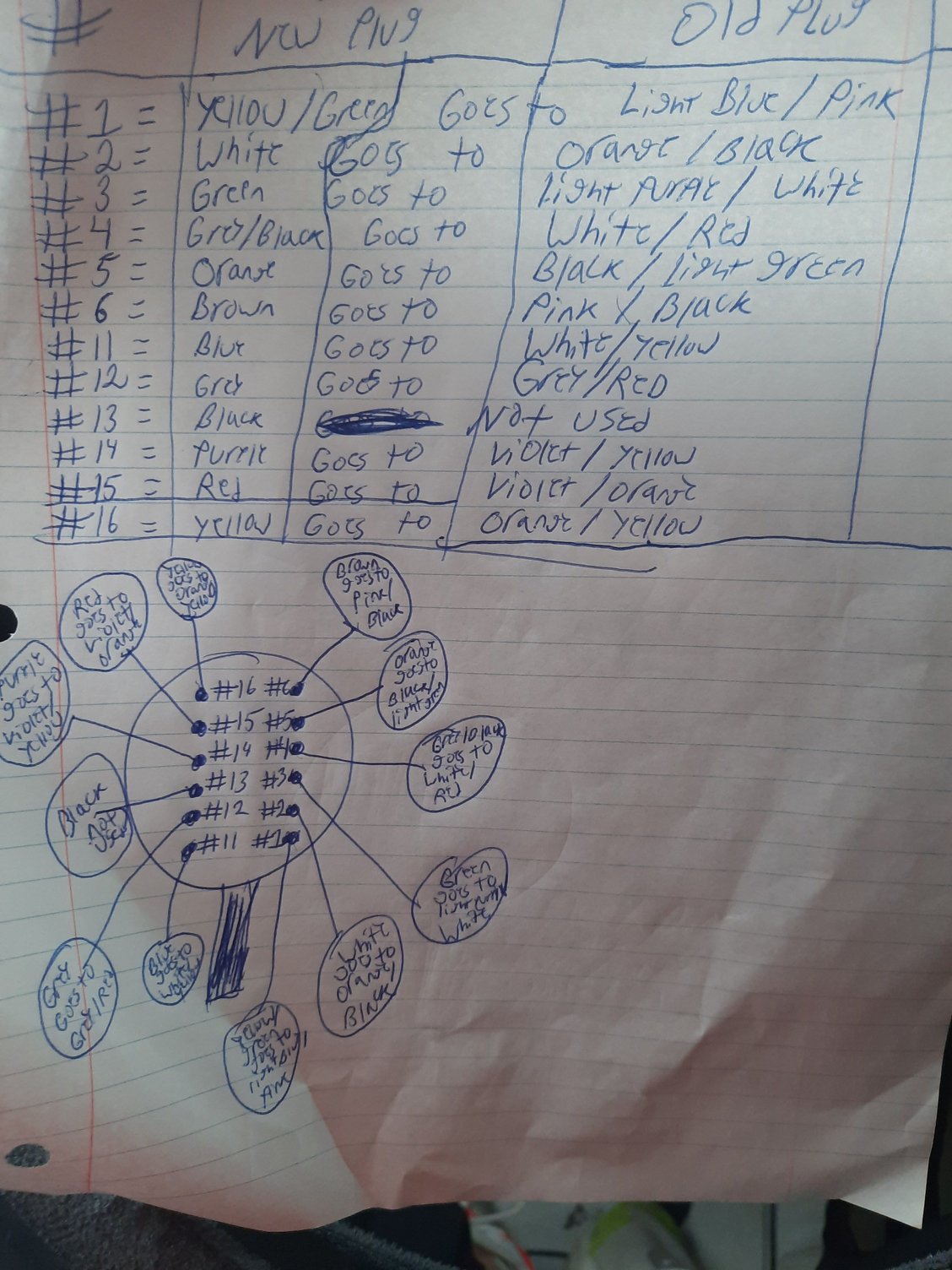

they finally sent me the color code for the new harness and i matched the color code from above to the one they sent and came out with this..... I'm gona wire it up today fingers crossed 🤞I'll post back and let everybody know if this is correct with these new aftermarket plugs
SUPERCHARGED RED ROCKET ------------------Master-Moderator
Joined: May 11, 2006
Posts: 10,645
Likes: 2,511
From: Carnegie, PA
Originally Posted by Combs1995
they finally sent me the color code for the new harness and i matched the color code from above to the one they sent and came out with this..... I'm gona wire it up today fingers crossed 🤞I'll post back and let everybody know if this is correct with these new aftermarket plugs
I'm assuming the vendor you purchased the wiring harness from sent you the matching color codes for the new harness? In the meantime, we'll be looking forward towards letting us know if their the correct codes... Fingers crossed
